Model Name |
Trance X E+ 1 |
|

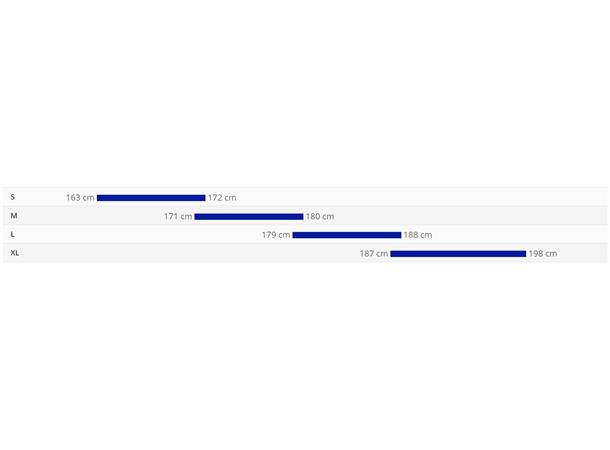

Sizes |
S, M, L, XL |
|
Colors |
Amber Glow |
|
Motor |
SyncDrive Pro, 85Nm, powered by Yamaha |
|
Battery |
EnergyPak Smart 750Wh
EnergyPak Plus range extender compatible |
|
Controls |
RideControl Ergo 3, grip integrated |
|
Display |
RideControl GO, frame integrated LED display
ANT+ Wireless display compatible |
|
Charger |
EnergyPak 6A smart charger |
|
Frame |
ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System,
'Boost' 148x12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible |
|
Fork |
Fox 36 Float Performance, 150mm travel, 44mm offset, Grip Damper, Boost 110x15QR, e-optimized |
|
Shock |
Fox Float X Performance, EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount |
|
Handlebar |
Giant Contact 35 Trail, 35x780mm |
|
Grip |
Giant Tactal Pro-E, single lock-on (S/M: medium, L,XL: large) |
|
Stem |
Giant Contact SL 35 |
|
Seatpost |
Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170) |
|
Saddle |
Giant Romero Trail |
|
Pedal |
Flatpedal |
|
Shifters |
Shimano Deore XT |
|
Front Derailleur |
MRP HD2 co-moulded chain guide |
|
Rear Derailleur |
Shimano Deore XT, 12-speed, Shadow+ |
|
Brakes |
Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm |
|
Brake Levers |
Shimano Deore XT BL-M8100, I-spec EV |
|
Cassette |
Shimano CS-M7100-12, 10-51T, 12-speed |
|
Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
|
Crankset |
Praxis Wavetm 36T Cold Forged 4130 premium steel
Praxis e-Cadet+ custom forged crankarm set |
|
Bottom Bracket |
- |
|
Rims |
Giant AM 29", Tubeless ready, 30mm inner width |
|
Hubs |
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
|
Spokes |
Sapim E-Lite [R] Race [F] |
|
Tires |
Maxxis Assegai 29x2.6" foldable, Tubeless, EXO
[F]
Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R] |
|
Lights |
|
|
Lock |
|
|
Extras |
Tubeless kit (liquid, valves, levers, manual, tool) |
