Model Name |

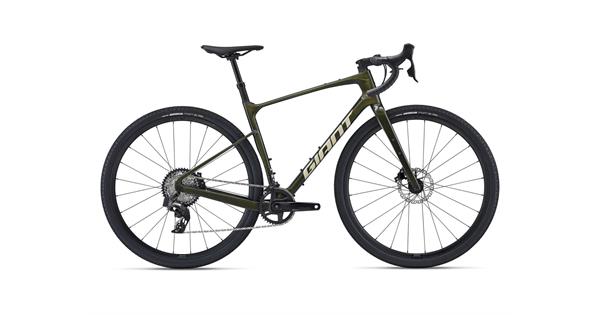

Revolt Advanced 1 |
|
Colors |
Phantom Green |
|
Sizes |
XS, S, M, M/L, L, XL |
|
Frame |
Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |
|
Fork |
Advanced-Grade Composite,
full-composite OverDrive steerer, 12mm thru-axle, disc |
|
Shock |
N/A |
|
Handlebar |
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
|
Grips |
Stratus Lite 3.0 |
|
Stem |
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
|
Seatpost |
Giant Contact Switch, dropper, 30.9mm XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm |
|
Saddle |
Giant Approach |
|
Pedals |
no pedal [GA, Pan-Eu]
platform pedal [GU, GV, GJ]
pedal w/toeclip and strap [All other GSC] |
|
Shifters |
SRAM Rival eTap AXS, 2x12 |
|
Front Derailleur |
SRAM Rival eTap AXS |
|
Rear Derailleur |
SRAM Rival eTap AXS XPLR |
|
Brakes |
SRAM Rival eTap AXS hydraulic, Giant MPH rotors [F]160mm, [R]140mm |
|
Brake Levers |
SRAM Rival eTap AXS hydraulic |
|
Cassette |
SRAM Rival, 12-speed, 10x44 |
|
Chain |
SRAM Rival D1 |
|
Crankset |
SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
|
Bottom Bracket |
SRAM DUB, press fit |
|
Rims |
Giant P-X2 Disc wheelset |
|
Hubs |
Giant P-X2 Disc wheelset |
|
Spokes |
Giant P-X2 Disc wheelset |
|
Tires |
Maxxis Rambler, 700x45c, tubeless |
|
Extras |
Giant 1x chain guide, tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position |
