Model Name |
Stance E+ EX |
|

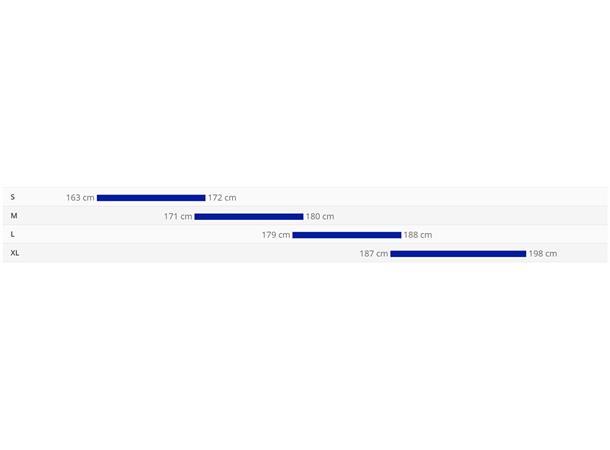

Sizes |
S, M, L, XL |
|
Colors |
Cold Iron |
|
Motor |
SyncDrive Sport, 70Nm, powered by Yamaha |
|
Battery |
EnergyPak Smart 625Wh |
|
Controls |
RideControl Dash, full color LCD screen |
|
Display |
RideControl Dash, full color LCD screen |
|
Charger |
EnergyPak 4A smart charger |
|
Frame |
ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount |
|
Fork |
SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 110x15 thru-axle |
|
Shock |
RockShox Monarch R, High Volume, 184x44mm, custom tuned |
|
Handlebar |
Giant Connect TR Riser 31.8x780mm |
|
Grip |
|
|
Stem |
Giant Contact |
|
Seatpost |
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
|
Saddle |
Giant Sport |
|
Pedal |
Aluminum Platform |
|
Shifters |
Shimano Deore, 10-speed LinkGlide |
|
Front Derailleur |
|
|
Rear Derailleur |
Shimano Deore, 10-speed, Shadow+ LinkGlide |
|
Brakes |
Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
|
Brake Levers |
Tektro HD-M745 Orion |
|
Cassette |
Shimano CS-LG600-10, 11-43T, 10-speed LinkGlide |
|
Chain |
Shimano, CN-LG500, 9/10/11speed for LinkGlide |
|
Crankset |
Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160, M/L:165, XL:170) |
|
Bottom Bracket |
N/A |
|
Rims |
Giant AM 29", Tubeless ready, 30mm inner width |
|
Hubs |
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR |
|
Spokes |
Stainless Steel |
|
Tires |
Maxxis Rekon 29x2.25" foldable, 60tpi, EXO, Tubeless Ready |
|
Lights |
Herrmans H-BLACK MR8 |
|
Kickstand |
Giant KSA18 direct mount kickstand |
|
Carrier |
Giant Rack-It MIK |
