Model Name |

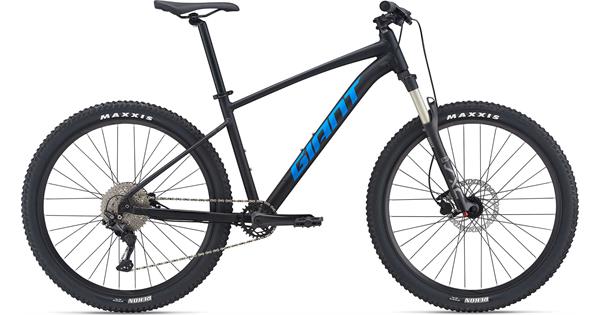

Talon 1 |
|
Colors |
Black, Hematite |
|
Sizes |
27.5: XS,S,M,L
29: S,M,L,XL,XXL |
|
Frame |
ALUXX-Grade Aluminum, disc |
|
Fork |
SXC32-2 RL, air spring, QR, alloy steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (27.5) / 100mm travel (29) L: 100mm travel (27.5) / 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29) |
|
Shock |
N/A |
|
Handlebar |
Giant Connect Trail, 31.8mm XS: 730mm (27.5) S: 780mm (27.5) / 780mm (29) M: 780mm (27.5) / 780mm travel (29) L: 780mm (27.5) / 780mm (29) XL: 780mm (29) XXL: 780mm (29) |
|
Grips |
Giant Sole-O |
|
Stem |
Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (27.5) / 60mm travel (29) L: 70mm (27.5) / 70mm (29) XL: 80mm (29) XXL: 90mm (29) |
|
Seatpost |
Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm travel (29) L: 375mm (27.5) / 375mm (29) XL: 375mm (29) XXL: 375mm (29) |
|
Saddle |
Giant custom |
|
Pedals |
MTB caged |
|
Shifters |
Shimano Deore M4100, 1x10 |
|
Front Derailleur |
N/A |
|
Rear Derailleur |
Shimano Deore M5120 |
|
Brakes |
Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm |
|
Brake Levers |
Tektro HDC M275 |
|
Cassette |
Shimano Deore M4100, 11x42 |
|
Chain |
KMC X10 |
|
Crankset |
ProWheel Charm, 30t (27.5) or 32t (29) XS: 165mm (27.5) S: 170mm (27.5) / 170mm (29) M: 170mm (27.5) / 175mm travel (29) L: 175mm (27.5) / 175mm (29) XL: 175mm (29) XXL: 175mm (29) |
|
Bottom Bracket |
cartridge |
|
Rims |
Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
|
Hubs |
alloy, sealed bearing |
|
Spokes |
stainless, 14g |
|
Tires |
Kenda Booster 27.5 or 29x2.4", wire bead |
|
Extras |
2.4" max tire size |
