Model Name
|

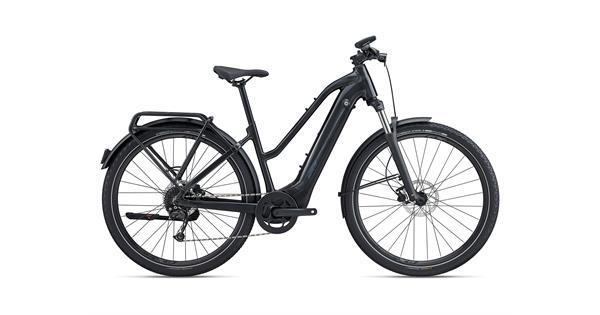

Explore E+ 2
|
|
Sizes
|
GTS: M, L, XL, XXL STA: S, M, L, XL
|
|
Colors
|
|
|
Motor
|
SyncDrive Sport2, 75Nm, powered by Yamaha
|
|
Battery
|
EnergyPak Smart 625
|
|
Controls
|
RideControl Dash
|
|
Display
|
RideControl Dash, full color lcd screen
|
|
Charger
|
EnergyPak 4A smart charger compact
|
|
Frame
|
ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated
battery, integrated KSA40 kickstand mount
|
|
Fork
|
SR Suntour XCM34, 100mm travel, 15x110mm AH Axle
|
|
Shock
|
n/a
|
|
Handlebar
|
Giant Connect Riser 31.8x690mm
|
|
Stem
|
Giant Contact (S/M: 80mm L/XL/XXL 100mm)
|
|
Grips
|
Giant Contact
|
|
Seatpost
|
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
|
|
Saddle
|
Selle Royal Vivo Ergo Moderate
|
|
Pedal
|
Aluminum Platform
|
|
Shifters
|
Shimano Altus
|
|
Front Derailleur
|
n/a
|
|
Rear Derailleur
|
Shimano Alivio, 9-speed
|
|
Brakes
|
Tektro HD-M275, hydraulic disc, 180mm
|
|
Brake Levers
|
Tektro HD-M275
|
|
Cassette
|
Shimano CS-HG200, 11-36T, 9-speed
|
|
Chain
|
KMC e.9 Sport, e-bike optimized
|
|
Crankset
|
Forged Alloy Direct spider/chainguard 46T Steel narrow/wide
chainring
|
|
Bottom Bracket
|
n/a
|
|
Rims
|
eX25, Tubeless Ready, 622x25 Aluminium
|
|
Hubs
|
Giant eTracker, [F] 110x15 [R] 142x12
|
|
Spokes
|
Stainless steel
|
|
Tires
|
Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
|
|
Lights
|
Recon E HL50 StVZO [F]
AXA NYX 6-12V E-bike tail light [R]
|
|
Kickstand
|
KSA40 direct mount kickstand
|
|
Carrier
|
MIK rack. System bag & basket compatible
|
|
Fenders
|
Alluminum
|
|
Lock
|
ABUS Xplus battery lock
|
|
Extras
|
|
