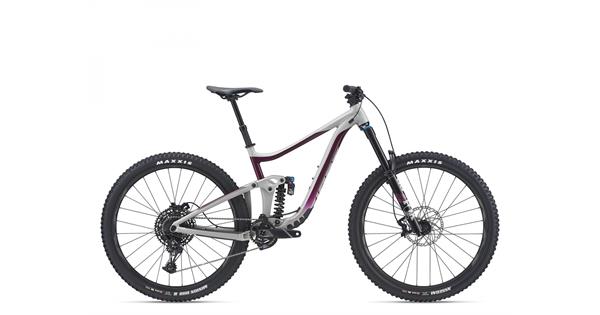

REIGN 29 SX
Choose your line and let it rip. From chunky
alpine terrain to warp-speed park runs, this 29er eats up rugged terrain. Its
smooth Maestro rear suspension and beefy 170mm fork help keep you in control no
matter what comes your way.
This 29er features a lightweight, stiff and super-strong ALUXX SL
frameset with our latest Maestro rear suspension. The components have been
hand-picked to excel on technical descents. The frameset is engineered with
progressive geometry including shorter chainstays, a longer toptube, and headtube/seattube
angles that put you in the perfect position to slay singletrack. The rear
suspension gives you 146mm of smooth, active rear travel with a new trunnion
mount shock and Advanced Forged Composite rocker arm. This SX model features a
170mm fork for outstanding control on high-speed descents. Add in a host of
other aggressive trail riding technologies, including a cleanly routed dropper
seatpost and the latest Giant WheelSystem with Boost hub spacing and tubeless
tires, and it’s ready to rip when you are.
Race-bred suspension: Maestro rear suspension and a 170mm fork developed and tested in Enduro
World Series races. The trunnion mount rear shock has a longer stroke and
smoother feel, and an Advanced Forged Composite upper rocker arm adds stiffness
while lowering overall frame weight.
Progressive enduro
geometry: The frameset features enduro-ready geometry
so you can ride aggressive descents and rail corners with confidence. The 64.56/76.36-degree
headtube/seattube angles with a 42mm fork offset produce confident front-end
handling with high-speed stability and control.
29er confidence and
control: Larger 29-inch diameter wheels roll over rugged
enduro terrain with improved balance and stability, giving you the momentum to
crank up tough climbs and the confidence to fly on fast, technical descents.
Technologies
Advanced
Composite
Advanced Forged Composite
Maestro
OverDrive
Giant Tubeless System
| Frame |
ALUXX SL-Grade Aluminum, 146mm Maestro
suspension |
| Fork |
Fox 38 Performance Elite, GRIP2, 170mm,110x15 Kabolt, tapered, 44mm
offset, custom tuned for Giant |
| Shock |
Fox DHX2 Performance Elite, 205/60, custom tuned for Giant |
| Handlebar |
Giant Contact SL TR35, 800x35mm, 20mm rise |
| Stem |
Giant Contact SL 35 |
| Seatpost |
Giant Contact Switch dropper post
with remote, 30.9 |
| Saddle |
Giant Romero |
| Pedals |
platform [GC,GT] |
| Shifters |
SRAM NX Eagle |
| Front Derailleur |
N/A |
| Rear Derailleur |
SRAM NX Eagle |
| Brakes |
Shimano SLX |
| Brake Levers |
Shimano SLX |
| Cassette |
SRAM NX Eagle, 11x50 |
| Chain |
SRAM NX Eagle |
| Crankset |
TruVativ Descendent 6k Eagle DUB, 32t with MRP alloy guide |
| Bottom Bracket |
SRAM DUB, press fit |
| Rims |
Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width |
| Hubs |
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant
Tracker Performance Boost 12x148, sealed bearing |
| Spokes |
Sapim |
| Tires |
[F] Maxxis Assegai 29x2.5 WT,
MaxxTerra, EXO+, TR [R] Maxxis
Minion DHR II 29x2.4 WT, MaxxTerra ,
EXO+, TR tubeless |
| Extras |
tubeless prepared |
