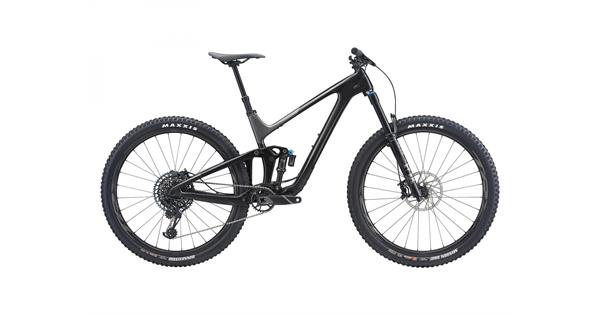

TRANCE X
ADVANCED PRO 29
Extra
travel, extra fun. From rowdy enduro runs to backcountry missions on steep,
chunky singletrack, this new composite 29er builds on the Trance 29 platform
with beefed up suspension and adjustable frame geometry.
This new member of the Trance
family is designed with a longer travel suspension setup for added control on
the most challenging trails. The full composite frame is engineered for 135mm
of rear travel and 150mm up front. The Maestro rear suspension has a two-stage
adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock.
The flip-chip equipped rocker arm lets you adjust frame geometry for your own riding
style and terrain. To fine tune the ride, you can choose a steeper or slacker
headtube angle (66.2 or 65.5 degrees) and seattube angle (77.9 or 77.2), which
results in either a 30mm or 40mm bottom bracket drop. And it’s all built around
29-inch wheels for added stability on rugged terrain.
29er
confidence and control: 29-inch
wheels roll over rough terrain with balance and stability, giving you more
momentum for technical climbs and the confidence to fly on fast, rugged
singletrack descents. Added clearance for up to 2.5-inch tires.
Progressive
suspension: New
Maestro rear suspension features a
trunnion mount shock with a
longer stroke and smoother feel. With 135mm of full rear-wheel travel (and
150mm up front), it features a two-position adjustable Advanced Forged
Composite flip-chip upper rocker arm for increased stiffness and strength plus
lower overall frame weight.
Adjustable
frame geometry:
Lightweight Advanced-grade composite frameset features adjustable geometry that
offers 66.2 or 65.5-degree headtube and 77.9 or 77.2-degree seattube angles,
resulting in 30mm or 40mm bottom bracket drop options for aggressive trail
configurations.
Technologies
Advanced Composite
Advanced
Forged Composite
Maestro
Suspension
OverDrive
Giant
Tubeless System
| Frame |
Advanced-Grade Composite front and rear
triangles, 135mm Maestro suspension, flip chip |
| Fork |
Fox 36 Performance Elite, GRIP2, 44mm offset, 150mm, 15x110 Kabolt,
custom tuned for Giant |
| Shock |
Fox Float DPX2 Performance, 185/55, custom tuned for Giant |
| Handlebar |
Giant Contact SLR TR35, 780x35mm, 20mm rise |
| Stem |
Giant Contact SL 35 |
| Seatpost |
Giant Contact Switch dropper with remote, 30.9 |
| Saddle |
Giant Romero SL |
| Pedals |
platform [GC,GT] |
| Shifters |
SRAM GX Eagle |
| Front Derailleur |
N/A |
| Rear Derailleur |
SRAM GX Eagle |
| Brakes |
SRAM G2 R |
| Brake Levers |
SRAM G2 R |
| Cassette |
SRAM XG-1275, 10x52 |
| Chain |
SRAM NX Eagle |
| Crankset |
TruVativ Descendent 6k Eagle, 30t |
| Bottom Bracket |
SRAM DUB, press fit |
| Rims |
Giant TRX-2 29 WheelSystem |
| Hubs |
Giant TRX-2 29 WheelSystem SRAM XDR |
| Spokes |
Giant TRX-2 29 WheelSystem |
| Tires |
[F] Maxxis Minion DHF 29x2.5, 3C, Max Terra, EXO, TR [R] Maxxis Dissector
29x2.4, 3C, Max Terra, EXO, TR, tubeless |
| Extras |
tubeless prepared |
