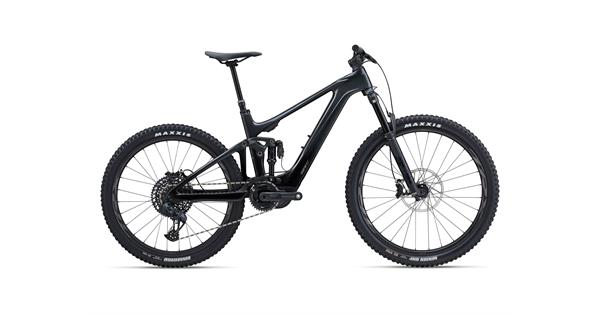

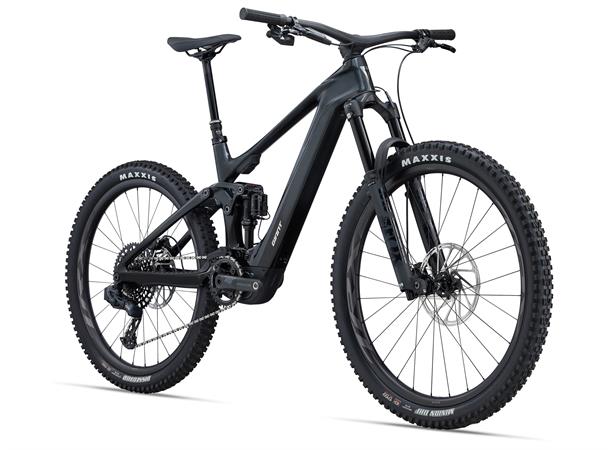

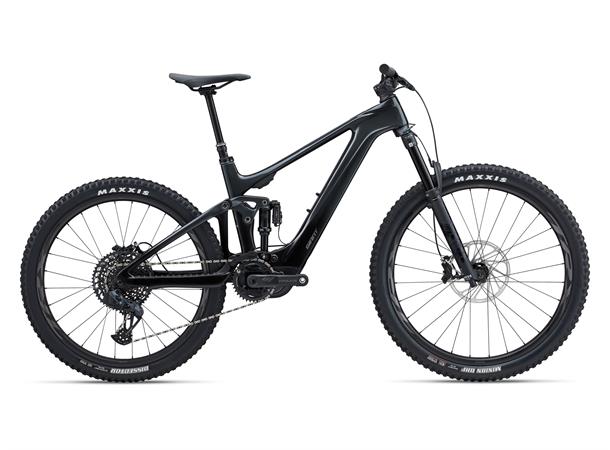

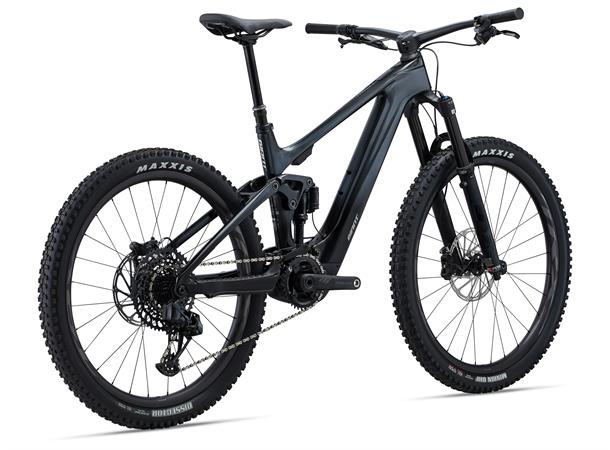

TRANCE X ADVANCED E+ EL 1 Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight,
full-suspension E-MTB. A new ultra-slim battery minimizes weight so you can ride technical trails the way you
always dreamed of.
WHAT’S NEW
All-new composite frame with adjustable geometry via a new flip chip feature. SyncDrive Pro motor with 85Nm of torque. All-new composite
Giant Contact SLR integrated handlebar with a sleek design. RideControl Go multifunctional on/off button, and new RideControl Ergo 3 handlebarmounted remote.
LIGHTER WEIGHT
New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller
package that’s cleanly integrated with the composite frameset.
ADVANCED COCKPIT CONTROL
RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar.
The control can be mounted to either side of the handlebar so you can customize your controls for
a clean, uncluttered cockpit.
MORE POWER

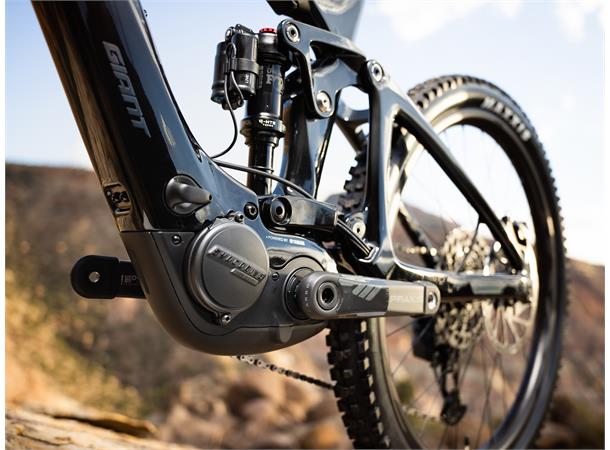

New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and
weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.
| Model Name |
Trance X Advanced E+ EL 1 |
| Sizes |
S, M, L, XL |
| Colors |
1 color (New) |
| Motor |
SyncDrive Pro, 85Nm, powered by Yamaha |
| Battery |
EnergyPak Smart 400
EnergyPak Plus range extender compatible |
| Controls |

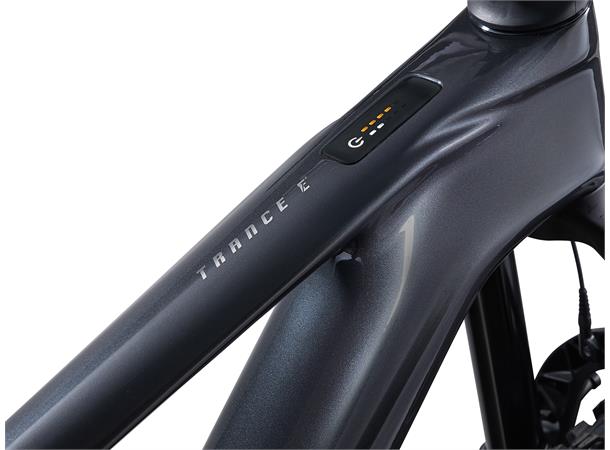

RideControl GO integrated in TT
RideControl Ergo 3 |
| Display |
ANT+ cycle computer compatible |
| Charger |
EnergyPak 4A smart charger compact |
| Frame |
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced
forged composite upper rocker, 140mm Maestro suspension system |
| Fork |
Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Grip2
damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated,
e-bike integrated |
| Shock |
Fox Float Performance Elite Live Valve, 185x52.5mm Trunnion mount,
electronic suspension, e-bike integrated |
| Handlebar |
Giant Contact SLR Trail, carbon, 800mm |
| Grip |
Giant Tactal Pro-E, single lock-on |
| Stem |
Giant Contact SLR Trail, integrated,
40/45/50mm Reach, 7/9degree Sweep Adjust System |
| Seatpost |
Tranz-X Rad+ travel adjust dropper, dropper, 30,9mm (S:100~140mm,
M:140~170mm, L/XL:170~200mm) |
| Saddle |
Giant Romero, Neutral |
| Pedal |
n/a |
| Shifters |
SRAM AXS Rocker Paddle, wireless electronic shifting |
| Front Derailleur |
MRP 1X HD2 custom co-molded chain guide |
| Rear Derailleur |
SRAM GX Eagle AXS |
| Brakes |
SRAM Code R, hydraulic disc,
220mm[F] /200mm[R] |
| Brake Levers |
SRAM Code R |
| Cassette |
SRAM XG-1275, 10-52T, 12-speed |
| Chain |
SRAM GX Eagle PowerLock |
| Crankset |
Praxis Performance Carbon e-crank arms
(S:160,M/L:165, XL:170)
SRAM X-SYNC Eagle 36T chain ring |
| Bottom Bracket |
n/a |
| Rims |
TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width |
| Hubs |
TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15
[F] / 148 x 12 [R] Thru-axle |
| Spokes |
|
| Tires |
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]
Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Lights |
Optional:
- Giant Recon series e-bike lights available and direct connectable |
| Kickstand |
- |
| Carrier |
- |
| Lock |
|
| Extras |
Tubeless kit (liquid, valves, levers, manual, tool)
Inner tube supplied |
