| Model Name |

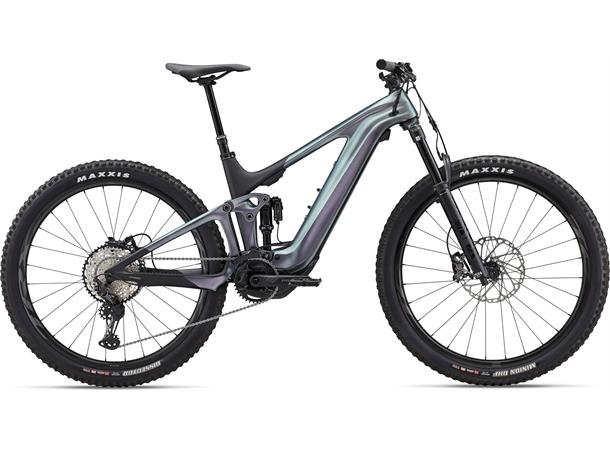

Trance X Advanced E+ 1 |
| Sizes |
S, M, L, XL |
| Colors |
1 color (New) |
| Motor |
SyncDrive Pro, 85Nm, powered by Yamaha |
| Battery |
EnergyPak Smart 800
EnergyPak Plus range extender compatible |
| Controls |
RideControl GO integrated in TT
RideControl Ergo 3 |
| Display |
ANT+ cycle computer compatible |
| Charger |
EnergyPak 6A smart charger |
| Frame |
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced
forged composite upper rocker, 140mm Maestro suspension system |
| Fork |
Fox 36 Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated, e-bike integrated |
| Shock |
Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated |
| Handlebar |
Giant Contact SL 35, 35x780mm |
| Grip |
Giant Tactal Pro-E, single lock-on |
| Stem |
Giant Contact SL 35 |
| Seatpost |
Tranz-X Rad+ travel adjust dropper, dropper, 30,9mm (S:100~140mm, M:140~170mm, L/XL:170~200mm) |
| Saddle |
Giant Romero, Neutral |
| Pedal |
Flatpedal |
| Shifters |
Shimano Deore XT |
| Front Derailleur |
MRP HD2 co-moulded chain guide |
| Rear Derailleur |
Shimano XT, 12-speed, Shadow+ |
| Brakes |
Shimano XT, BR-M7120, 4-piston, hydraulic disc, 203mm |
| Brake Levers |
Shimano XT, I-spec EV |
| Cassette |
Shimano CS-M7100, 10-51T, 12-speed |
| Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
| Crankset |
Praxis e-Cadet+ custom forged crankarm set (S:160mm, M/L: 165mm, XL:170mm) |
| Bottom Bracket |
n/a |
| Rims |
e-TRX Hookless Clincher, 29", 30mm inner width |
| Hubs |
e-TRX 6 Bolt, Shimano Micro-spline, 110 x 15 [F], 148 x 12 [R] Thru Axle |
|
|
| Tires |
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
| Lights |
Optional:
- Giant Recon series e-bike lights available and direct connectable |
| Kickstand |
- |
| Carrier |
|
| Lock |
Torx 25 Battery Lock with built-in Torque limiter |
| Extras |
Tubeless kit (liquid, valves, levers, manual, tool)
Inner tube supplied |
