Model Name
|

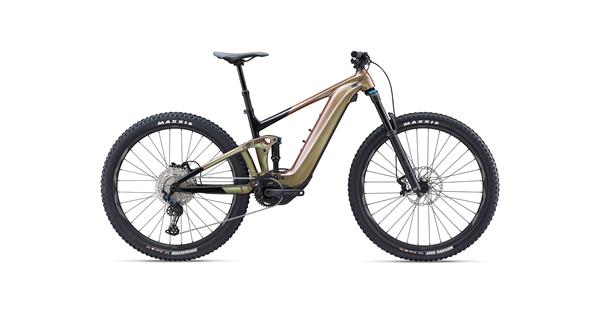

Trance X E+ 2
|
|
Sizes
|
S, M, L, XL
|
|
Colors
|
1 color (New)
|
|
Motor
|
SyncDrive Pro, 85Nm, powered by Yamaha
|
|
Battery
|
EnergyPak Smart 800
EnergyPak Plus 250Wh range extender compatible
|
|
Controls
|
RideControl GO integrated in TT
RideControl Ergo 3
|
|
Display
|
ANT+ Wireless display compatible
|
|
Charger
|
EnergyPak 6A smart charger
|
|
Frame
|
ALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro
Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range
Extender Compatible
|
|
Fork
|
Fox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep
adjust, Boost 110x15QR, e-optimized
|
|
Shock
|
Fox Float DPS Performance, EVOL
Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom
tuned
|
|
Handlebar
|
Giant Contact 35 Trail, 35x780mm
|
|
Grip
|
Giant New trail grip Half-waffle/single lock-on
|
|
Stem
|
Giant Contact SL 35
|
|
Seatpost
|
Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
|
|
Saddle
|
Giant Romero E
|
|
Pedal
|
Flatpedal
|
|
Shifters
|
Shimano SLX
|
|
Front Derailleur
|
MRP HD2 co-moulded chain guide
|
|
Rear Derailleur
|
Shimano SLX, 12-speed, Shadow+
|
|
Brakes
|
Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm
|
|
Brake Levers
|
Shimano SLX, I-spec EV
|
|
Cassette
|
Shimano CS-M6100-12, 10-51T, 12-speed
|
|
Chain
|
KMC e.12 Turbo, EcoProteq, e-bike optimized
|
|
Crankset
|
Praxis Wavetm 36T Cold Forged 4130 premium steel
Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165,
XL:170)
|
|
Bottom Bracket
|
n/a
|
|
Rims
|
Giant AM 29", Tubeless ready, 30mm inner width
|
|
Hubs
|
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline
Drive Body Thru-axle
|
|
Spokes
|
Sapim E-Lite [R] Race [F], e-bike optimized
|
|
Tires
|
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra
[F]
Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
|
|
Lights
|
|
|
Kickstand
|
|
|
Carrier
|
|
|
Lock
|
Torx 25 Battery Lock with built-in Torque limiter
|
|
Extras
|
Tubeless kit (liquid, valves, levers, manual, tool)
|
