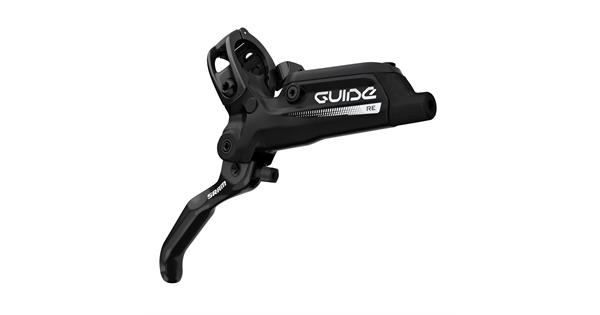

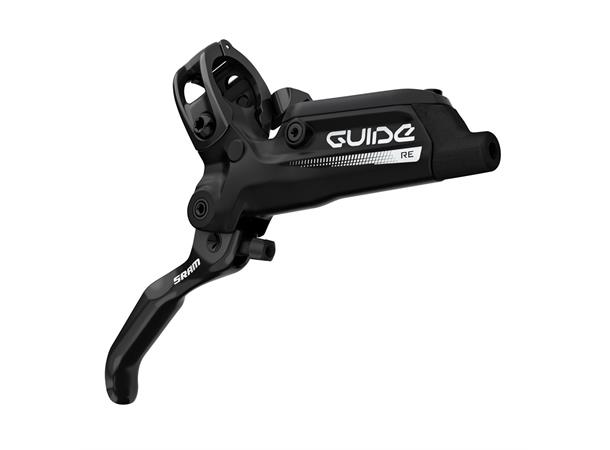

Disc Brake Guide RE (Reach,E-MTB) Guide Aluminum Lever Code 4Piston Caliper Gloss Black Front 950mm Hose (Rotor/Bracket sold separately)A1

Guide RE is SRAM's optimized braking solution for today's exciting category of E-MTBs, capable of handling the higher average speeds, more intense use and increased mass due to the presence of the motor and battery. It combines SRAM's proven Guide R lever assembly with a powerful 4-piston caliper derived from the gravity-focused Code brakes. Guide RE provides real, usable on-trail control-optimal power and modulation mean speed can be controlled in all terrain and in all situations, both uphill and downhill.

FEATURES

• Guide R lever assembly with proven Guide technologies
• Powerful 4 piston caliper derived from the Code gravity specific brakes
• Sintered pads for better pad life in intensive use
• MatchMaker™ X compatible
• Ambidextrous lever mount
• Tool-free reach adjust

SPECIFICATIONS

• Application (DB): MTB
• Brake type: Hydraulic
• Blade material:  Aluminum - Stamped
• Color (DB): Gloss Black
• Rec MMX clamp (not included): Stl(glossblk)bolt,blk clp
• Orientation: Front, Rear
• Pad type (Disc):  Steel-backed metal sintered
• Bracket (Disc Brake): direct mount DIR
• Hose length (mm):  1800mm, 950mm
• Rotor (AM only): n/a
• Pistons: 4
• Piston material: Phenolic Plastic
• Rotor type recommended: 1-piece CenterLine
• Clamp Included (DB):  Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
• Weight(G): 415
